GENERAL DESCRIPTION

The SLB628D is a constant frequency, 6-pin

SOT23 current mode step-up converter intended for

small, low power applications. The SLB628D

switches at 1.2MHz and allows the use of tiny, low

cost capacitors and inductors 2mm or less in height.

Internal soft-start results in small inrush current and

extends battery life.

The SLB628D features automatic shifting to pulse

frequency modulation mode at light loads. The

SLB628D includes under-voltage lockout, current

limiting, and thermal overload protection to prevent

damage in the event of an output overload. The

SLB628D is available in a small 6-pin SOT-23

package.

FEATURES

? Integrated 80mΩ Power MOSFET

? 2.2V to 16V Input Voltage

? 1.2MHz Fixed Switching Frequency

? Adjustable Over Current Protection: 0.5A

~2.5A

? Internal 2.5A Switch Current Limit(OC pin

floating)

? Adjustable Output Voltage

? Internal Compensation

? Over Voltage Protection

? Up to 20V Output Voltage

? Automatic Pulse Frequency Modulation Mode

at Light Loads

? up to 93% Efficiency

? Available in a 6-Pin SOT23-6 Package

APPLICATIONS

? Battery-Powered Equipment

? Set-Top Boxed

? LCD Bais Supply

? DSL and Cable Modems and Routers

? Networking cards powered from PCI or PCI

express slots

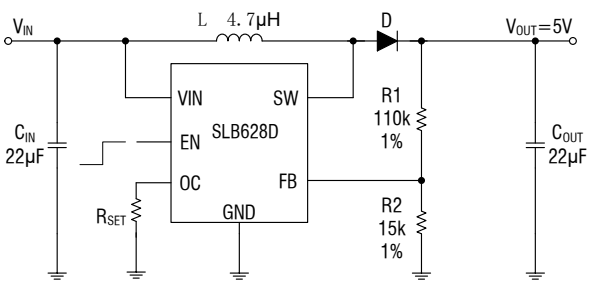

TYPICAL APPLICATION
