18V 2A 500KHz Synchronous Step-Down Regulator

General Description

The SL1588 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to achieve a 3A peak output current over a wide input supply range,

with excellent load and line regulation.

The SL1588 requires a minimal number of readily available, external components and is available in a space saving

SOT23-6 package.

Features

? Wide 4V to 18V Operating Input Range

? 2A Continuous Output Current

? 500kHz Switching Frequency

? Short Protection with Hiccup-Mode

? Built-in Over Current Limit

? Built-in Over Voltage Protection

? Internal Power-Save Mode (PFM/PWM)

? Internal Soft-Start

? Output Adjustable from 0.8V

? No Schottky Diode Required

? Integrated internal compensation

? Thermal Shutdown

? Available in SOT23-6 Package

? -40°C to +85°C Temperature Range

Applications

? Digital Set-top Box (STB)

? Tablet Personal Computer (Pad)

? Flat-Panel Television and Monitor

? Wi-Fi Router / AP

? Digital Video Recorder (DVR)

? Portable Media Player (PMP)

? Cable Modem / XDSL

? General Purposes

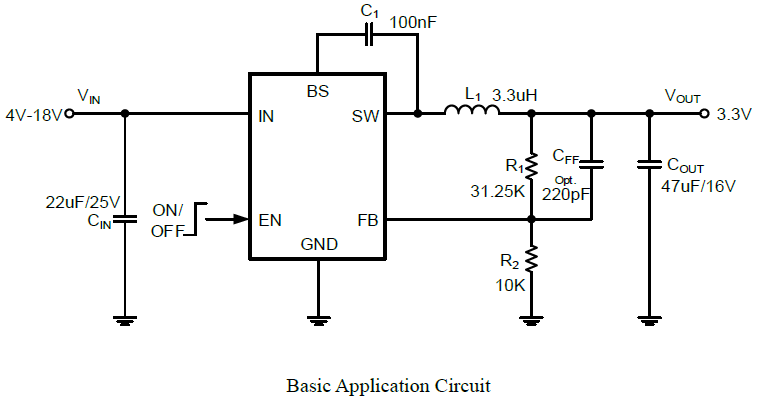

Typical Application Circuit
