1MHz, 2A Step-Up Current Mode PWM Converter

General Description

The SL1573 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 0.2
power

MOSFET make this regulator highly power efficient. The internal compensation network also minimizes

as much as 6 external component counts. The non-inverting input of error amplifier connects to a 0.6V

precision reference voltage and internal soft-start function can reduce the inrush current.

The SL1573 is available in the SOT23-6L package and provides space-saving PCB for the

application fields.

Features

Adjustable Output up to 12V

Internal Fixed PWM frequency: 1.0MHz

Precision Feedback Reference Voltage: 0.6V (±2%)

Internal 0.2
, 2A, 16V Power MOSFET

Shutdown Current: 0.1μA

Over Temperature Protection

Adjustable Over Current Protection: 0.5A ~ 2.5A

Package: SOT23-6L

Applications

Chargers

LCD Displays

Digital Cameras

Handheld Devices

Portable Products

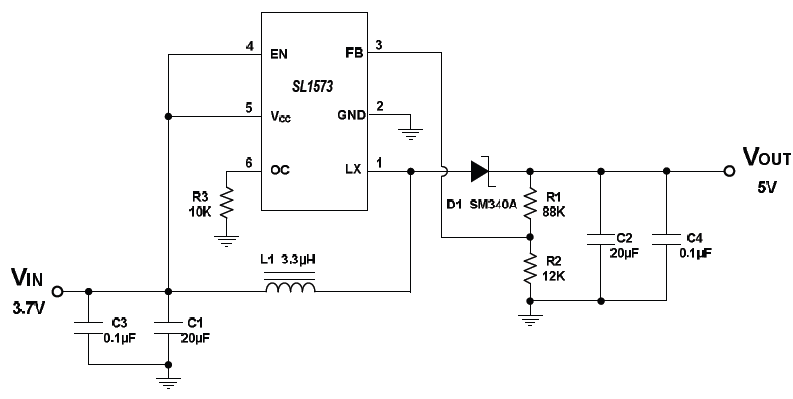

Typical Application Circuit
