DESCRIPTION

  The SL1571Bis a high-power density, asynchronous boost

converter with a 120mΩ power switch to provide a high

efficiency and small size solution in portable systems. The

SL1571B has input voltage range from 2.6 V to 5.5 V to

support applications with different power supply. The device

has 3A switch current capability and can provide an output

voltage up to 16V.

  The SL1571B also implements a soft-start function and an

adjustable switching peak current limit function.

In addition, the device provides 20V output overvoltage

protection, and thermal shutdown protection.

FEATURES

?Input voltage range: 2.6V to 5.5V

?Output voltage range: up to 16V

?Programmable switch peak current limit:

?0.1μA current consumption during shutdown

?Programmable soft start

?Output overvoltage protection (at 20V)

therma shutdown protection

?Pb-free Packages,ESOP8

APPLICATIONS

?Chargers

?LCD Displays

?Digital Cameras

?Handheld Devices

?Portable Products

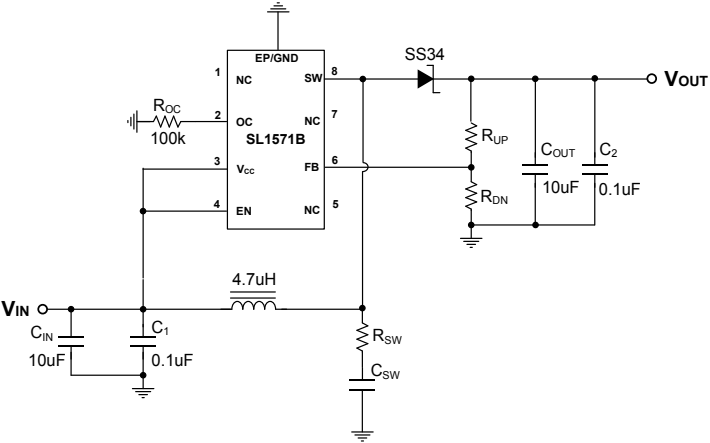

TYPICAL APPLICATION
