SL4006 10A電流模式非同步PWM升壓轉(zhuǎn)換器

升壓恒壓芯片

DCDC升壓電路

非同步升壓恒壓

內(nèi)置15mΩ 14V MOSFET、過流點可調(diào)2A-10A

概述

The SL4006 is a current mode boost DC-DC converter. It is PWM circuitry with built-in 15mΩ

power MOSFET make this regulator highly power efficient. The non-inverting input of error amplifier

connects to a 1.2V precision reference voltage. Current mode control and external compensation

network make is easy and flexible to stabilize the system.

The SL4006 is available in the SOP-8L(EP) package to fit in space-saving PCB for the

application fields.

特點

? Supply Voltage Operating Range: 2.7V to 12V

? Adjustable Output up to 13V

? Internal Fixed PWM frequency: 400KHz

? Precision Feedback Reference Voltage: 1.2V (±2%)

? Internal 15mΩ, 10A, 14V Power MOSFET

? Shutdown Current: 1μA (Max.)

? Over Temperature Protection

? Internal Soft Start Function

? Adjustable Over Current Protection: 2A ~ 10A

? Package: SOP-8L(EP)

應用

? Chargers

? LCD Displays

? Digital Cameras

? Handheld Devices

? Portable Products

? Power Bank

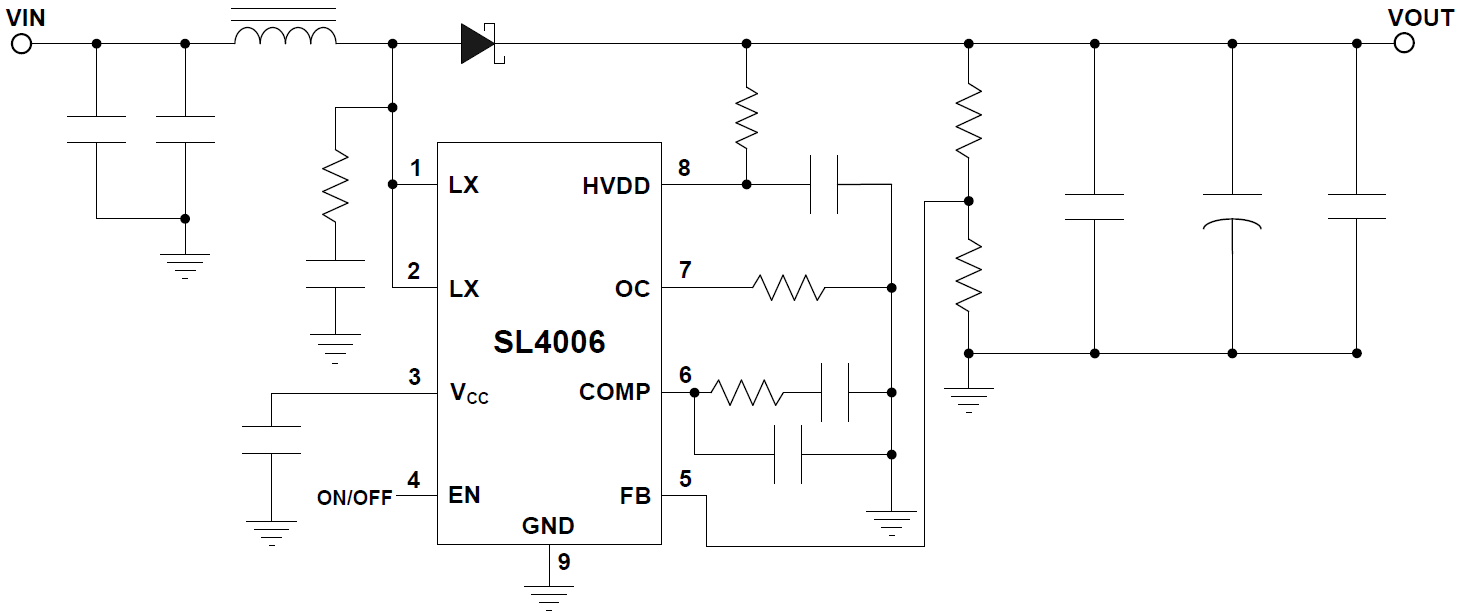

原理圖
