SL1585 30V輸入 輸出可調 同步降壓3A

DCDC 4V~30V降壓3.3V3A電流同步降壓IC

DCDC 4V~30V轉5V同步降壓芯片

DCDC 4V~30V降壓12V同步降壓電路

dcdc寬輸入30V同步降壓穩壓電路

描述

The SL1585 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to achieve a 4A peak output current over a wide input supply range,

with excellent load and line regulation.

The SL1585 requires a minimal number of readily available, external components and is available in a space saving

ESOP8 package.

特點

? Wide 4V to 30V Operating Input Range

? 3A Continuous Output Current

? Fixed 500KHz Switching Frequency

? No Schottky Diode Required

? Short Protection with Hiccup-Mode

? Built-in Over Current Limit

? Built-in Over Voltage Protection

? Internal Soft start

? Output Adjustable from 0.925V

? Integrated internal compensation

? Thermal Shutdown

? Available in ESOP8 Package

? -40°C to +85°C Temperature Range

應用范圍

? CCTV Camera

? Flat-Panel Television and Monitor

? Battery Charger

? Distributed Power Systems

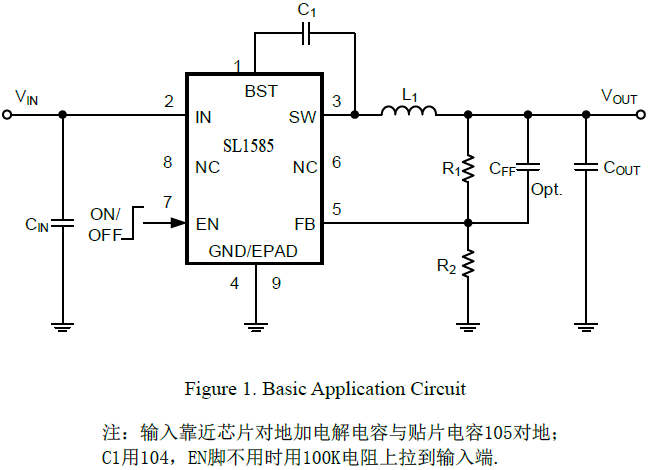

電路圖
