DCDC4.5V-28V轉15V、12V、5V、3.3V/2A同步降壓芯片
發布日期：2022-09-28 瀏覽次數：670
dcdc4.5V-28V轉15V2A電源芯片
dcdc4.5V-28V轉12V2A穩壓芯片
dcdc4.5V-28V轉5V同步降壓IC
dcdc4.5V-28V轉3.3V降壓恒壓芯片
Features
? Wide 4.5V to 28V Operating Input Range
? 2A Continuous Output Current
? 500KHz Switching Frequency
? ECOT PSM Mode Control with Fast Transient
Response
? Built-in Over Current Limit
? Built-in Over Voltage Protection
? PFM Mode for High Efficiency in Light Load
? Internal Soft-Start
? 100mΩ/50mΩ Low RDS(ON) Internal Power
MOSFETs
? Output Adjustable from 0.8V
? No Schottky Diode Required
? Short Protection with Hiccup-Mode
? Integrated internal compensation
? Thermal Shutdown
? Available in SOT23-6 Package
? -40°C to +85°C Temperature Range
Applications
? Automotive Systems
? Network Terminal Equipment
? Security Monitoring Camera
? Printer Systems
? Industrial Power Systems
? Distributed Power Systems
General Description
The SL1588M is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power
MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply
range, with excellent load and line regulation. ECOT PSM control operation provides very fast transient response
and easy loop design as well as very tight output regulation.
The SL1588M requires a minimal number of readily available, external components and is available in a space saving
SOT23-6 package.

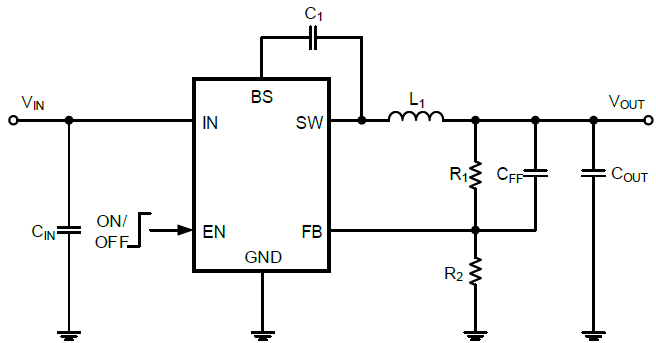

Typical Application Circuit
